Psychrometric Variables Comparison of Air

Subject

Climatology

,
Academic Year

2'nd Year

,
Complexity Level

Beginner

,
Content tags

Air Properties

,

Psychrometry

,
Activity Type

Demonstration

,
Activity duration

10 mins

,
Objective

To compare the psychrometric parameters of air at different conditions.

Outcome

Students will develop a deep understanding of psychrometric principles and variables in the psychrometric chart.

Requirements

Psychrometric chart

Prerequisites
  1. Conceptual knowledge of psychrometry
  2. Understanding of psychrometric chart
Procedure

Step 1: Plot the following on the psychrometric chart

  1. DB=25 ℃, HR = 20 g/kg.
  2. DB=30 ℃, HR = 20 g/kg.

Step 2: Answer the following:

  1. What is the RH for both? 100%, 75%.
  2. What is the specific volume of both air? 0.87, 0.89.
  3. What is the maximum moisture that both air can hold? 20,27.
  4. Which air is more ‘humid’? It’s the same.

Image:

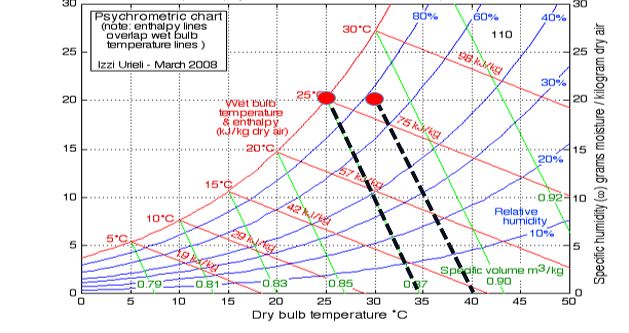

Psychrometric Chart for different air conditions

References

Fairconditioning’s Psychrometry presentation
